HSE issues safety alert on radiograph duplication and falsification

29/02/2024

The Health and Safety Executive (HSE) has investigated a number of instances where non-destructive testing (NDT) has been falsified, mainly at the fabrication stage. Welds have not been thoroughly tested and/or the results have been misrepresented. In these cases, there is a significant risk of flaws and defects going undetected, with a subsequent risk of structural failure. The HSE has therefore found it necessary to issue the following safety alert highlighting that the NDT process is vulnerable to tampering and that there is a risk of premature failure of a component or structure if companies do not carry out NDT properly.

Most recently, during a large-scale steam boiler construction, which required hundreds of internal tube welds and thousands of radiographic images, instances of film duplication were noticed by the inspector. Further investigation revealed large-scale falsification of weld images and shortcuts taken to reduce the time spent on site:

Radiographs were produced without unique identification being affixed at the time of exposure. Identification numbers were ‘flashed’ on to the film during post-exposure processing, contrary to the requirements of the standard in place at the time
(BS EN ISO 17636-1:2013), allowing falsification to take place.
Multiple exposures were taken of the same weld at once (by film double loading). While this is allowed in the standard, it is intended for use when establishing exposure variables and allows for selection of the best image from a number of films. It may also be used for examining a larger cross-section of thicknesses in one exposure. However, in this case, the spare images generated by double loading the film had false numbers added during image processing. An example is shown in the images below.

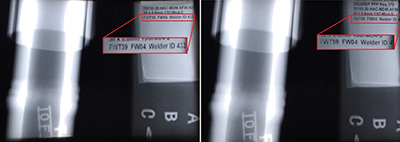

	*Radiographs of tube welds FWT39 and FWT59 are identical* Images courtesy of NECIT Services Ltd, independent third-party reviewer

There was also some indication that readily accessible welds were used repeatedly and substituted (with false identification numbers added later) for welds that were more difficult to access.

There was also a suggestion that the exposure time may have been shortened by reducing the distance to the radiographic source, which would require tampering with the image quality indicators to give a false indication of resolution.

Other indications of gross malpractice were ignored, most notably the large number of welds radiographed in one working shift. Estimates of capability varied from between ten welds to 20 welds per shift; however, numbers regularly exceeded this, with one instance of 104 weld butts (312 images) supposedly undertaken. Neither the NDT company management, the main contractor, the customer nor the notified body recognised the implications of the large number of radiographs recorded.

There were other issues around the competence of those verifying the work. The person appointed was qualified as a weld inspector, but not sufficiently qualified to interpret radiographs.

HSE is also aware of another example, where some film radiographs were marginally smaller than the majority submitted for approval post-fabrication. Further scrutiny revealed that:

The shorter negatives had been cropped by 10-15 mm.
Those negatives had captured part of the tank construction deemed to be exempt from radiography due to access difficulties.
The cropped sections contained defects that would require concession or, in some cases, cutting out and repair.

Standards

In both examples, a company accredited by the United Kingdom Accreditation Service (UKAS) was involved in either production or assessment of the radiographs. These companies would normally be expected to conform to BS EN ISO/IEC 17020. This states that they shall be responsible for the impartiality of their inspection activities and shall not allow commercial, financial or other pressures to compromise impartiality.

BS EN ISO 9712 specifies requirements for the qualification and certification of those who perform NDT. The standard outlines the responsibilities of anyone associated with an NDT certification scheme including, for example:

Making the employer responsible for the results of NDT activities and staff under their control, requiring a documented procedure; and
Ensuring certificate holders abide by a code of ethics published by their certification body.

BS EN ISO 9712 also states that the certification body can withdraw NDT certification, for example if they find evidence of behaviour incompatible with the certification scheme or failure to abide by a code of ethics.

Various accreditation schemes have codes of ethics, requiring those working in NDT to adhere to a set of principles. These include requirements to act with integrity, avoid deception and not knowingly mislead.
Examples of schemes include:

The British Institute of Non-Destructive Testing (BINDT) code of conduct;
The Welding Institute (TWI) code of conduct, applicable to NDT technicians endorsed under their Certification Scheme for Welding and Inspection Personnel (CSWIP); and
The American Society for Nondestructive Testing (ASNT) code of ethics.

Action required

There is a risk of premature failure of a component or structure if companies do not carry out non-destructive testing properly. Therefore, operators of the equipment being examined and those companies providing the service have duties under the Health and Safety at Work etc Act 1974, in particular Sections 2 and 3.

Operators undertaking or commissioning non-destructive testing, for initial integrity or ongoing assurance, should understand:

The qualification systems for NDT operatives and those assessing NDT output, for example Personnel Certification in Non-Destructive Testing (PCN) and CSWIP;
The NDT techniques being used and their limitations;
The NDT coverage required and defect acceptance criteria, under relevant standards, for example for pressure vessel manufacture, where applicable;
The conditions required to successfully undertake NDT, for example access and cleanliness;
The time required to achieve adequate results;
The causes of human failure and violations, for example non-compliances, circumventions, shortcuts and workarounds (with respect to undertaking NDT), and ways of reducing them, as described in ‘Reducing error and influencing behaviour’ (HSG48);
Employer responsibilities under BS EN ISO 9712, for example issuing written authorisation for NDT personnel to operate and assurance activities;
Inspection body responsibilities under BS EN ISO/IEC 17020 on impartiality and independence;
What the output should look like; and
How to identify suspect results.

For radiography in particular:

‘Flash identification’ of welds should not normally be accepted; unique and permanent identification at the time of exposure is usually part of the relevant construction standard and where this is the case it should be adhered to.
Double loading should be tightly controlled and requirements fully documented within the radiography procedure/written non-destructive testing instruction. Generally, this practice is only needed for initial exposures. Once established (after the first few exposures), double loading of film is unnecessary and combined with ‘flash identification’ offers an opportunity for duplicates to be generated.
Images should be assessed by someone demonstrably competent.
Alterations of negatives or manipulation or obscuring of the image should not be accepted.

For practitioners of NDT:

An individual has duties under Section 7 of the Health and Safety at Work etc Act 1974 ‘to take reasonable care for the health and safety of himself and other persons who may be affected by his acts or omissions.’ Failing to properly undertake NDT and falsification of records could be regarded as a breach of this legislation.
Section 7 places important duties on the employee irrespective of the obligations on the employer. An individual’s activity is also governed by a set of ethical principles in line with those published by the Engineering Council (www.engc.org.uk) and should be adhered to.

References

‘HSE Safety Alert: Radiograph duplication and falsification’, HSE Bulletin CEMHD1-2023 (www.hse.gov.uk/safetybulletins/radiography-duplication-falsification.htm).
BS EN ISO 17636-1:2013 ‘Non-destructive testing of welds. Radiographic testing. Part 1: X- and gamma-ray techniques with film’, British Standards Institution (www.bsigroup.com).
BS EN ISO/IEC 17020:2012 ‘Conformity assessment. Requirements for the operation of various types of bodies performing inspection’, British Standards Institution.
BS EN ISO 9712:2022 ‘Non-destructive testing. Qualification and certification of NDT personnel’, British Standards Institution.
British Institute of Non-Destructive Testing (BINDT) Code of Conduct for individuals, ‘Statement of Ethical Principles and Code of Conduct’ (www.bindt.org).
The Welding Institute (TWI) Professional Membership Rules and Code of Conduct (www.theweldinginstitute.com).
Code of Ethics for Members of the American Society for Nondestructive Testing, ‘ASNT Code of Ethics’ (www.asnt.org).
‘Reducing error and influencing behaviour (HSG48) (second edition)’, HSE 1999 (www.hse.gov.uk).
Engineering Council and Royal Academy of Engineering Statement of Ethical Principles, Engineering Council (www.engc.org.uk).

Relevant legal documents

Health and Safety at Work etc Act 1974.
Provision and Use of Work Equipment Regulations 1998.
Pressure Equipment (Safety) Regulations 2016.
