Vibration measurement kit
19/03/2025

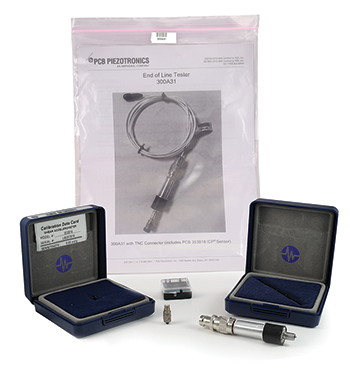

PCB Piezotronics (PCB) is introducing Model 300A31 end-of-line testing kit, the company’s first bundle for integration into automated subsystem testing. The simplified, compact kit combines the measurement accuracy PCB accelerometers are well known for with long-lasting durability, cycle tested beyond 1,000,000 cycles.
 |
Model 300A31 is a simplified kit designed for end of production line vibration performance validation with an isolator life beyond 1,000,000 cycles, a high upper frequency of 10,000 Hz and a compact size, meaning it can be inserted into isolated areas of the item under test, such as the gearbox and transmissions.
Model 300A31 is PCB’s first kit for integration into automated subsystem testing, where the base of the accelerometer is put into contact with the device under test and response characteristics are measured through vibration, via an accelerometer (353B18).
The accelerometer and isolator assembly (080A245) are also available as individual components.
Model 300A31 can be used to validate end of production line systems for: transmissions (vibration from gear changes, solenoids or fluid); engines (rotating assembly validation); tyres, steering and engine components; the gearbox, transfer-case and differential; motors and actuator assemblies; and battery, heat-sink and coolant packages.
PCB Piezotronics
www.pcb.com
