A safer, smarter approach to weld inspection: why advanced ultrasonic testing is redefining industry standards
05/03/2026
Across the oil & gas sector and wider energy industries, weld integrity remains a cornerstone of asset safety, operational reliability and regulatory compliance. From cross-country pipelines and offshore structures to refineries and pressure vessels, welds are critical points of both strength and vulnerability. For decades, radiographic testing (RT) has been the dominant non-destructive testing (NDT) method for volumetric weld inspection, valued for its intuitive, image-based results and long-standing acceptance in codes and standards.
However, the industry context in which RT became the default solution has changed dramatically. Today, asset owners face growing pressure to reduce inspection times, improve safety performance, ensure full digital traceability and minimise environmental impact, all while maintaining or improving defect detection reliability. In this environment, the limitations of radiography have become increasingly difficult to justify.
At the same time, ultrasonic testing (UT) has undergone a quiet but profound transformation. Advances such as phased array ultrasonic testing (PAUT), time-of-flight diffraction (TOFD) and, more recently, plane wave imaging (PWI) combined with the total focusing method (TFM) have elevated UT from a complementary technique to a true alternative and, in many cases, a superior replacement for radiography.
This article explores how advanced ultrasonic technologies are reshaping weld inspection practices, with a particular focus on the oil & gas sector. It draws on Eddyfi Technologies’ latest developments, including the Cypher ultrasonic platform and automated inspection solutions, to illustrate how safer, faster and more data-rich inspections are now achievable in real-world conditions.
Radiographic testing earned its place as the industry benchmark for weld inspection for good reasons. By producing a permanent visual record, RT enabled inspectors to detect volumetric defects such as porosity, slag inclusions and lack of fusion with relative ease. Its results were easy to communicate, widely accepted by regulators and deeply embedded in inspection codes.
Yet despite incremental improvements, radiography has changed little in principle over the past several decades.
Digitisation has replaced film in some cases but the core challenges remain.
Radiography relies on ionising radiation, whether from X-ray generators or gamma sources such as Iridium-192. This introduces inherent safety risks that cannot be eliminated, only managed. Exclusion zones, controlled areas, radiation safety officers and regulatory oversight are all necessary, adding complexity and cost to inspection campaigns.
In busy fabrication yards, refineries or offshore platforms, these exclusion zones often disrupt parallel activities, creating bottlenecks and extending project schedules. In some environments, radiography may only be permitted during shutdowns or night shifts, further reducing productivity.
Radiographic inspection is also time-intensive. Exposure times, film handling, chemical development and image interpretation all contribute to extended inspection cycles. Consumables such as film, chemicals and lead screens generate ongoing costs and environmental liabilities, particularly when inspections are performed at scale.
Moreover, the probability of detection (POD) in radiography is influenced by defect orientation and source positioning. Planar defects aligned unfavourably with the radiation beam may be difficult to detect, potentially compromising inspection reliability.
As asset owners increasingly prioritise safety, efficiency and sustainability, these limitations have prompted a reassessment of whether radiography should continue to be the default solution for weld inspection.
Ultrasonic testing has long offered a safer alternative to radiography, but early conventional UT techniques were often criticised for their reliance on operator skill and their limited ability to provide intuitive, image-based results.
The introduction of phased array ultrasonic testing marked a turning point.
PAUT replaced single-angle probes with electronically steered and focused ultrasonic beams. This allowed inspectors to scan welds from multiple angles using a single probe, generating sectorial scans (S-scans) that significantly improved defect detection and characterisation.
For the oil & gas industry, PAUT delivered several critical advantages:
- Improved coverage and sensitivity compared to conventional UT
- Enhanced detection of planar defects
- Elimination of radiation hazards
- Digital data acquisition and storage.
PAUT rapidly gained acceptance in international codes and standards and became, in many applications, the preferred alternative to radiography.
The combination of PAUT with time-of-flight diffraction further strengthened ultrasonic inspection capabilities. TOFD excels at detecting and sizing planar defects by measuring diffracted signals from defect tips, providing accurate through-wall height measurements.
Together, PAUT and TOFD form a robust, code-compliant inspection approach that addresses many of the weaknesses of radiography. However, as inspection demands continued to grow, particularly for faster inspections and higher data quality, the industry looked for the next leap forward.
Plane wave imaging represents the latest evolution in ultrasonic inspection. Unlike traditional full matrix capture (FMC), which fires each array element sequentially, PWI transmits a single plane wave that insonifies the entire inspection region in a single shot.
When combined with total focusing method reconstruction, this approach delivers exceptional imaging performance with far greater efficiency.
PWI + TFM offers several compelling advantages for weld inspection:
- Speed: data acquisition can be three to five times faster than traditional FMC, enabling higher scan speeds without sacrificing image quality.
- Image clarity: improved signal-to-noise ratio and spatial resolution provide sharp, high-contrast images that closely resemble radiographic results.
- Data efficiency: smaller file sizes simplify data storage, sharing and long-term archiving.
- Performance in challenging materials: PWI performs particularly well in thick or attenuative materials common in
oil & gas applications.
When PWI is combined with TOFD, inspectors gain a radiography-grade inspection solution without the hazards, delays or consumables associated with radiation-based methods.
As Edwin van der Leden, Product & Application Expert at Eddyfi Technologies, noted: “PWI + TOFD gives you the clarity of an X-ray image, the speed of automation and the safety of ultrasound.”
A practical comparison highlights the operational impact of replacing radiography with PWI + TOFD ultrasonic inspection.
A typical radiographic set-up requires multiple components: a radiation source, film or digital detectors, film processing equipment, scanners and consumables. By contrast, a PWI + TOFD inspection can be performed using a single ultrasonic instrument, probes, a scanner and software, without the need for consumables.
When inspecting large numbers of welds, the difference in inspection time is significant. For example, inspecting 100 welds using advanced ultrasonic methods can take less than half the time required for gamma radiography, once set-up, exposure, processing and analysis are considered.
Faster inspections translate directly into reduced project timelines, lower costs and less disruption to operations.
Perhaps most importantly, ultrasonic inspection eliminates radiation risks entirely. This not only improves safety outcomes but also simplifies logistics, enabling inspections to be carried out alongside other activities and in environments where radiography is impractical or prohibited.

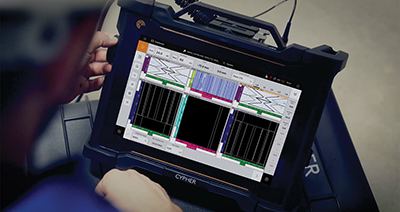

Technology alone is not enough; usability and workflow integration are equally critical. Eddyfi Technologies’ Cypher platform was developed to make advanced ultrasonic inspection accessible, efficient and consistent, even as inspection techniques become more sophisticated.
Cypher supports a wide range of ultrasonic modalities within a single system, including PAUT, TOFD, FMC/TFM, PWI and pulse compression imaging (PCI).
Inspectors can run multiple techniques simultaneously in a single pass, maximising data collection while minimising inspection time.

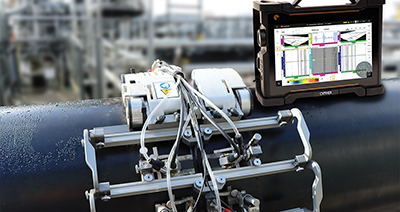

Key features include real-time PWI and TFM reconstruction with high signal-to-noise ratio, dual 64-element probe support for enhanced coverage and intuitive software designed with direct input from inspectors and application engineers. When paired with the Navic 2 magnetic-wheel crawler, Cypher enables fully automated weld inspections. The crawler allows for remote operation in hazardous or difficult-to-access environments, with scan speeds up to 250 mm/s and precise encoded positioning.
Automation delivers consistent, repeatable results while reducing operator exposure and fatigue, an increasingly important consideration as the industry addresses skills shortages and workforce safety.
For oil & gas operators, the transition from radiography to advanced ultrasonic inspection offers tangible benefits across the asset lifecycle.
Removing radiation from inspection activities directly improves safety performance and simplifies regulatory compliance, particularly in offshore, confined or live-plant environments.
Higher inspection speeds and reduced logistical constraints help keep construction, maintenance and repair projects on schedule, supporting tighter turnaround times and lower costs.
Digital, high-resolution ultrasonic data provides a richer understanding of weld integrity. Encoded inspection records support traceability, audits and long-term asset integrity management.
In an industry increasingly driven by data and risk-based decision-making, this level of insight is invaluable.
Radiography has served the industry well but its limitations are no longer compatible with the demands of modern oil & gas operations. Advanced ultrasonic techniques, particularly PWI combined with TOFD, now offer a compelling alternative that matches or exceeds radiography in detection capability while delivering significant gains in safety, speed and data quality.
With platforms such as Cypher and automated solutions such as the Navic 2, Eddyfi Technologies is helping the industry make this transition seamlessly. The result is not just a change in inspection technique, but a fundamental shift towards safer, smarter and more efficient weld inspection practices.
In the years ahead, as digitalisation, automation and safety continue to shape the energy sector, advanced ultrasonic inspection is set to become the new standard, redefining what is possible in non-destructive testing.
www.eddyfi.com
